ANT - 24V Switch Box / Control Unit
e.g. for 24V operated solenoid valves of hydraulic or pneumatic systems
Made in Germany
Dimensions: 310 x 265 x 165 mm
Weight: approx. 4,6 kg

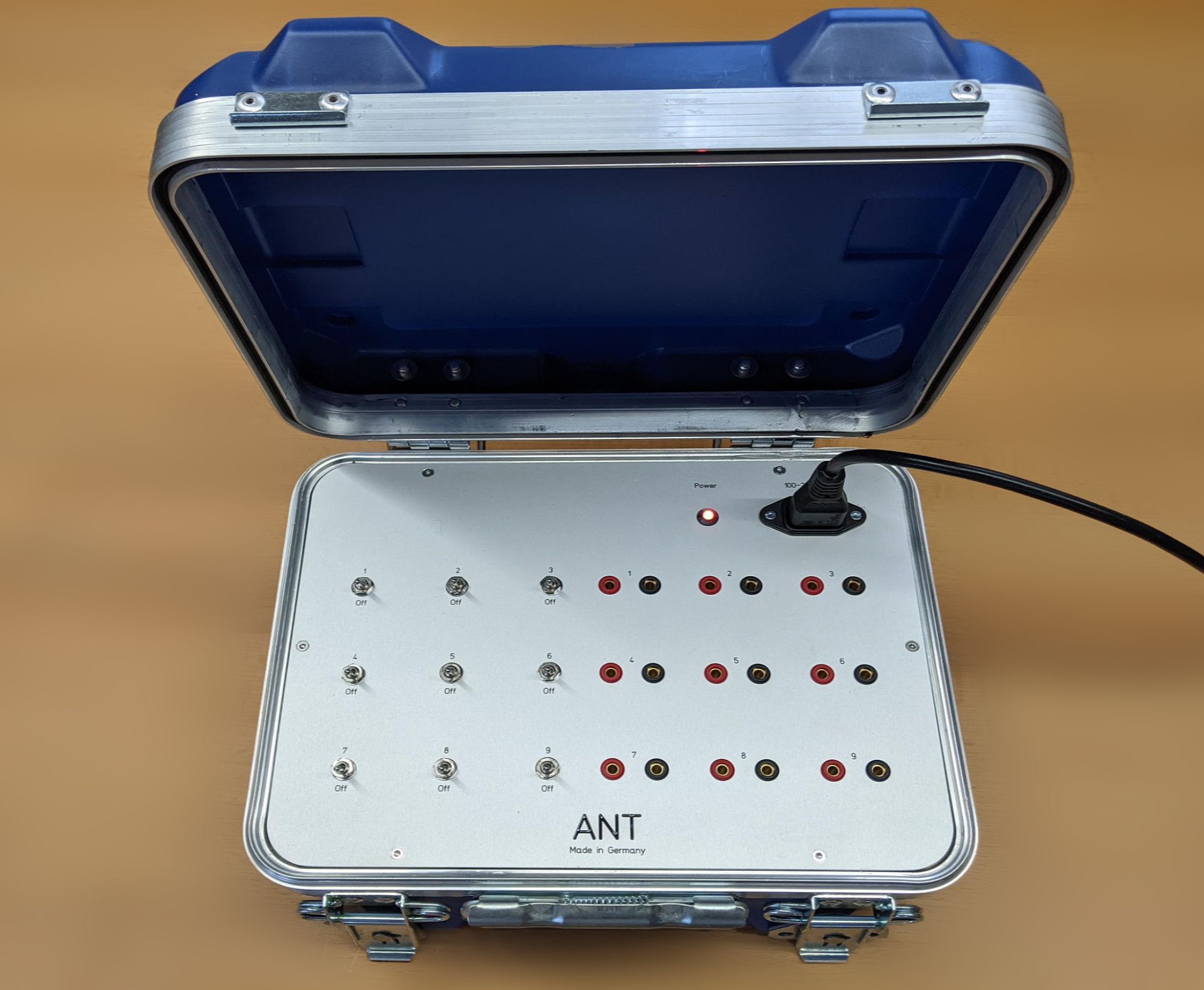

The ANT is an easy-to-use switch box to digitally enable and disable 24V signals.
The ANT supports you, e.g. during the duration of a flushing procedure of a piping system to keep the solenoid valves activated by different circuits for a long time.
The ANT supports service technicians and engineers during commissioning and testing of valves, pressure switches and other components with a digital signal input of 24VDC.
The ANT is suitable to operate the above mentioned devices independent from a PLC.
The ANT prevents reverse polarity, overload, and gives you a short circuit protection.
The ANT is equipped with a built-in power supply for worldwide use .

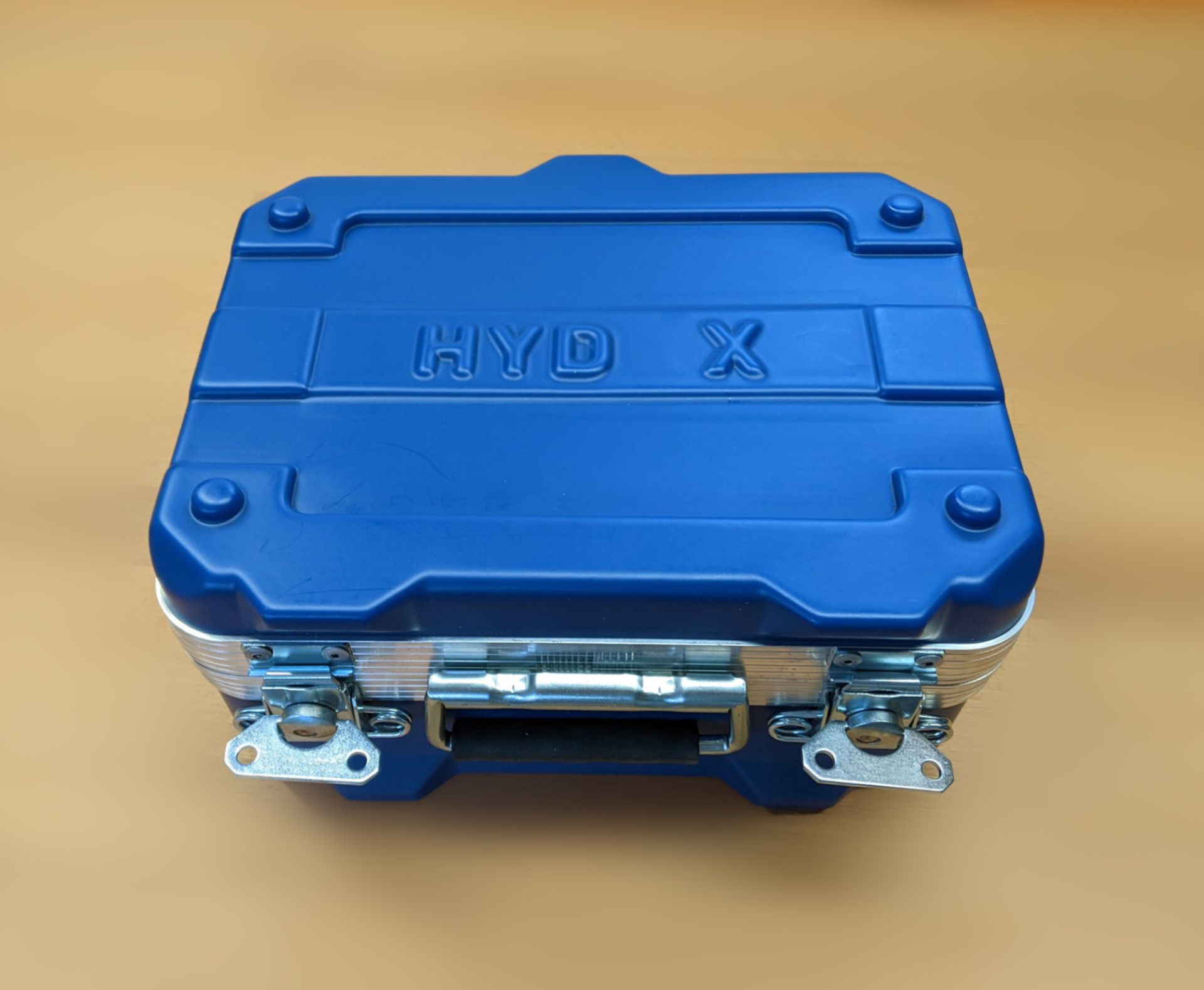

The ANT is housed in a watertight, shockproof case for maximum durability.
