electric
RAY - 5 V & 24V Battery Box
- rechargeable-
for the HYDX-Set Point Generators, as well as
RC-controllers, FPV goggles, FPV headsets, and mobile devices
Operating Time up to:
1 1/2 hours at 4A load
Made in Germany
electric
RAY - NEW GENERATION
Technical Specification:
Operating time up to:
90 minutes at 4A load
Dimensions: 310 x 265 x 200 mm
Weight: 7.6kg
Protection: IP44
Mains voltage input: 100-250V
Low voltage output: 24V ± 3%
Maximum load: 8A
Output voltage: 24 V for powering other equipment
5 V for charging mobile devices

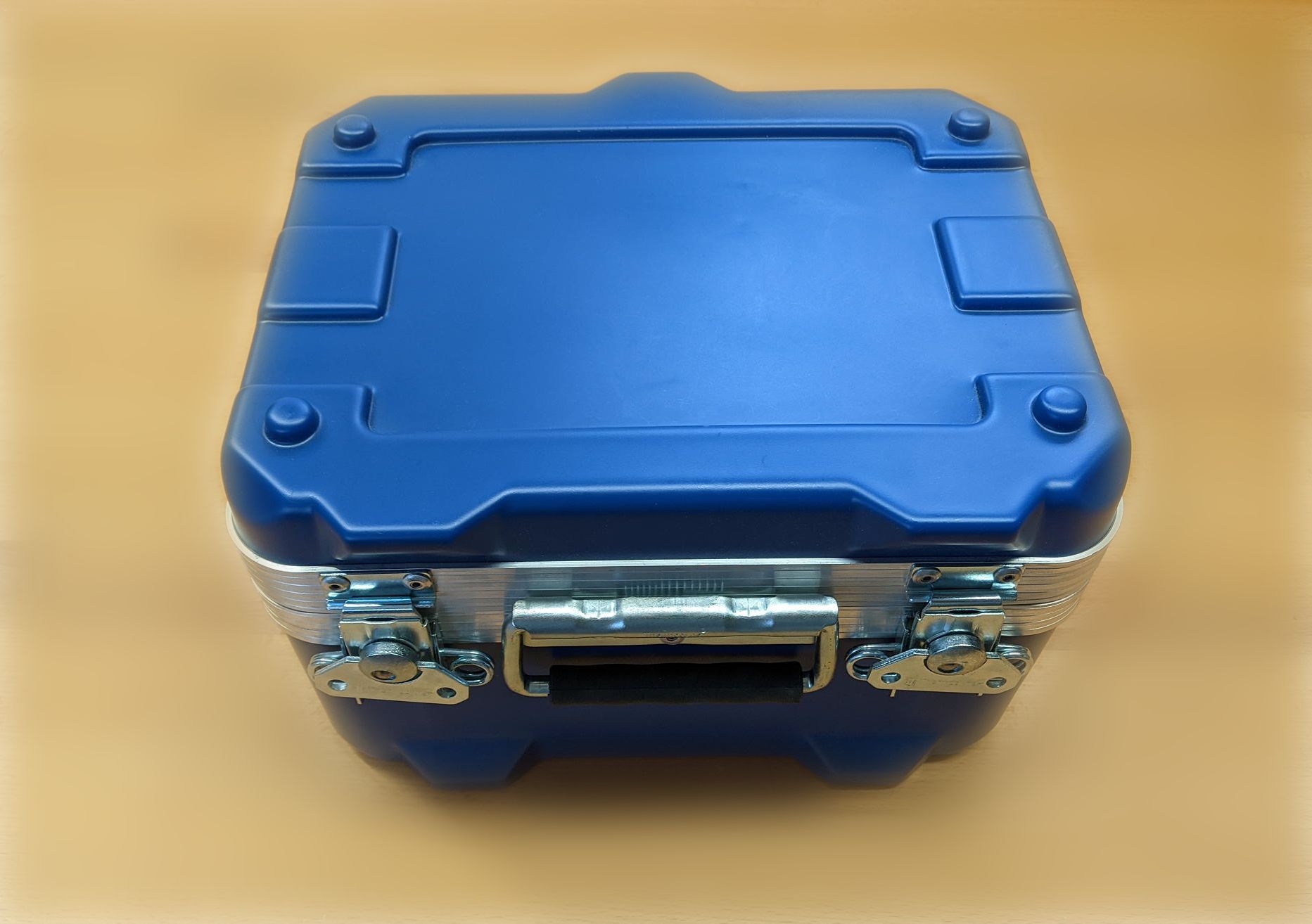

electric RAY is housed in a watertight, shockproof case for maximum durability.

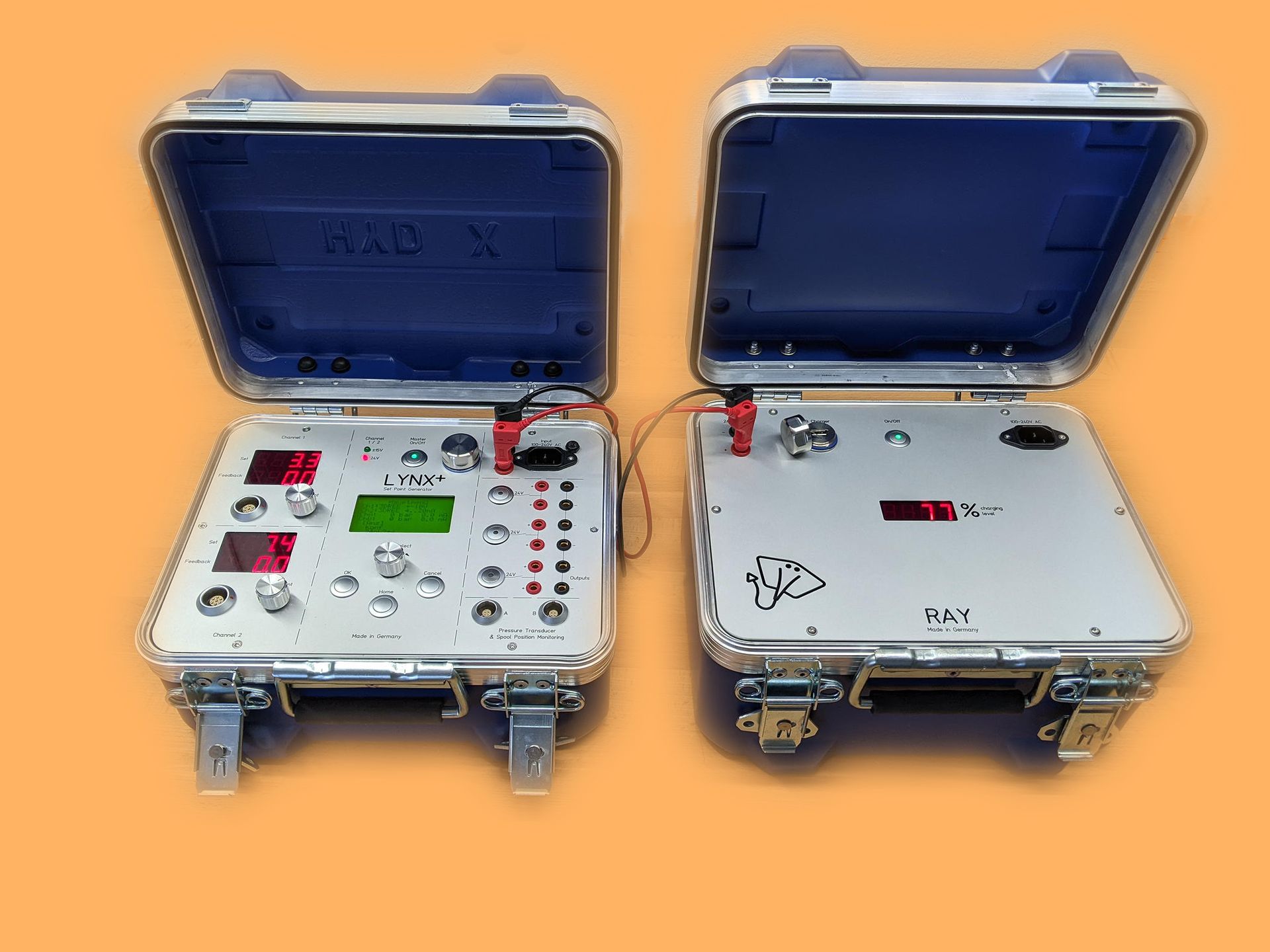

electric RAY ( see right side of the pic as example) is feeding a Lynx+ Set Point Generator during commissioning
The RAY – Rechargeable Battery Box.
The RAY is a rechargeable battery box and the ideal companion for the HYDX-Set Point Generators [LYNX (+), RHINO (+), ORCA (+), ARMADILLO (+)], as well as
RC-controllers, FPV goggles, FPV headsets, and mobile devices.
The RAY is perfect for situations where no mains power is available or for other mobile applications.
With the RAY, all HYDX-SET Point Generators — including connected valves and measuring transducers — can operate independently for up to 90 minutes at a 4A load.

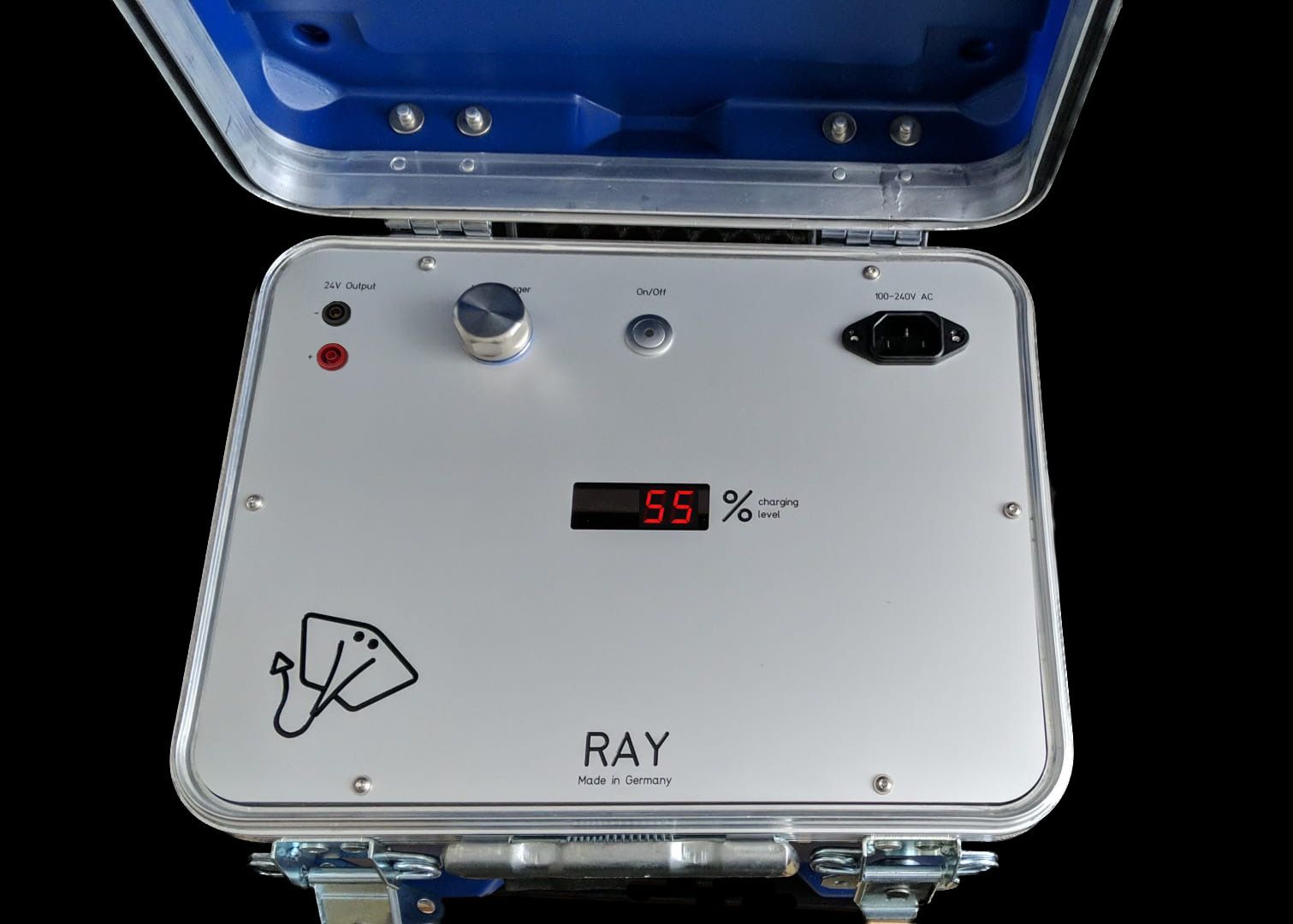

In addition to its built-in rechargeable battery, the RAY features integrated charging electronics, a constant-voltage output regulator, and a high-resolution charge level display ranging from 1% to 100%.
The RAY is user-friendly, with a single button to activate the 24V output to power, for example, another HYDX-Set Point Generator such as the LYNX+.
The RAY also offers a 5V output, protected by a dust cap, for charging mobile devices such as RC-Controllers, FPV goggles, FPV headsets, iPhones, Android smartphones, tablets, and more.
With its built-in power adapter, global recharging is simple via standard
110–240V mains power.
The charge level is continuously displayed during both charging and discharging.
Designed to support service technicians and engineers during the commissioning of hydraulic and pneumatic systems in conjunction with the HYDX-Set Point Generators.
In addition, the RAY offers a flexible solution for charging or direct power delivery in a variety of use cases and for different user groups.
The RAY is housed in a watertight, shockproof case for maximum durability.
